Tamiya 1/25 scale R/C Panther tank  56601
I do have several unopend brand new kits of this 1/25 scale Panther still available for sale ...
this model has bean discontinued by Tamiya since about 4 years ...
Tamiya's MSRP: $338.00
my price $ 275,-  / $ 290,- insured shipping ,delivery confirmation , within the USA

I also have the DMD T-02 and dual-gearbox available
as combo $ 175 ,-
or as individual items :
DMD $115,- ( MSRP: $165.00 )
gearbox $ 105,-
$ 10,- insured shipping within the USA

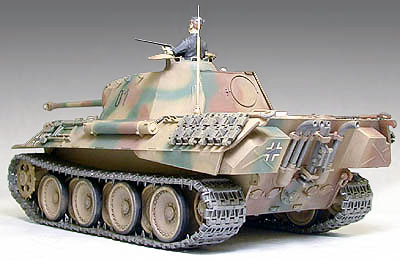

(Images show model after assembly and painting)

From the powerful turret to the subtle detailing of the engine grille,
the Panther-A has been recreated with high authenticity.


The unique suspension features a resin torsion bar and independent motion of all road wheels,
providing the weighty feeling of the real tank. Tracks come preassembled.


The Twin-Gearbox and DMD Control Unit (T-02) provide running just like a real tank!
The running power source consists of 4 alkaline batteries or Ni-Cd batteries,
enabling about 1 hour of continuos running over flat surfaces (when using alkaline batteries.)


DMD Control Unit T-02

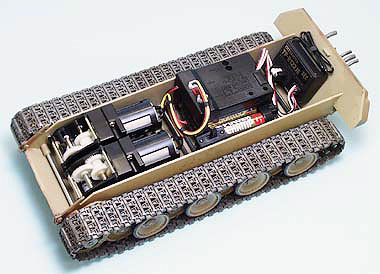

Assembly twin gearbox fits snugly in compact chassis.





The Panther-A as an R/C Tank!!

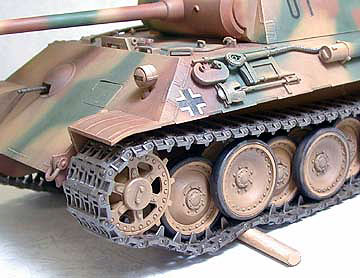

Moveable Suspension
Delight in the fascinating assembly of the resin torsion bar equipped suspension, which moves just like that of the full-size tank. Rolling over obstacles and undulations in the ground, the preassembled tracks and suspension express the ample weightiness of the real Panther-A.

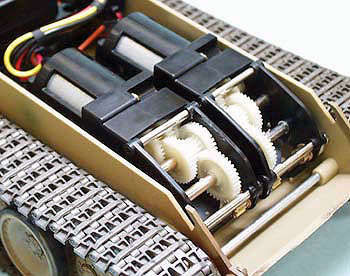

Twin Gearbox with 280-type Motors
Mounting and assembly of the left/right independent twin gearbox to the compact chassis is simple and fun. Two 280-type motors with carbon brushes boast high endurance and efficient energy consumption, enabling about one hour of continuos running over flat ground (when using alkaline batteries.)
DMD Control Unit (T-02) for Smooth Performance
The Panther-A is equipped with a DMD Control Unit (T-02), which consists of a FET amplifier for running of the motor and a control unit for precise steering. These technologies provide the user with superb control potential, including forward/reverse, rolling turns, pivots, and super-pivots, over a wide range of speeds. R/C car enthusiasts will especially delight in the unique control of this vehicle.
Authenticity that only Tamiya can Provide
From the powerful turret to the highly detailed engine grille, the Panther-A overflows with realism. This R/C tank features all the improvements of the Model A Panther, including the ball mounted hull machine gun, observation slit equipped armored cupola, and reinforced road wheels. Kit also includes markings for three different Wehrmacht divisions and four figures of realistic expression.

DMD Control Unit T-02
The high quality DMD Control Unit T-01 is used in the 1/16 M4 Sherman and King Tiger R/C Tanks. For the 1/25 Panther-A, the T-02 version of the DMD Control Unit has been adopted. The T-02 takes up only 64% of the mounting space compared to the T-01 DMD Control Unit and is designed for use with the 280-type motors. This control system enables user to control a variety of movements such as forward/reverse, rolling turns, pivots, and super pivots over a wide range of speed. We invite you to take the commander's seat of your very own Panther-A!


Model Specifications
Overall length: 355mm
Overall width: 135mm
Overall height: 144mm (including figure)
Weight fully equipped: 800g
Minimum clearance: 20mm
Wheel base: 220mm
Tread: 107mm
Chassis material: plastic
Suspension: torsion bar
Drive train: left/right independent twin gearbox
Gear ratio: 39.73:1
Control system: DMD Control Unit T-02
Track width: 27.5mm
Track length 542mm (variable)
Two 280-motors included.
Required Items
2-channel R/C Transmitter
Running battery: 4 Tamiya Power Champ SP alkaline batteries or UM3 (AA) Ni-Cd batteries.
Batteries for transmitter: UM3 (AA) batteries x 8
*If using an older Sanwa reciever (black case), an S-connector is necessary (sold separately).
*Warning: Do not use battery with voltage higher than the amount specified in kit.




Tamiya 1/25 scale R/C Panther kit


Gearbox/DMD Combo


Gearbox


 DMD T-02


shipping and paypal-fee's are included ...
if you buy multiple items , please still use the "buy it now" button's,
I will adjust the shipping-cost's and refund the difference ...




Willy
